UAOS-AL
UAOS-AL features a Billet Black Anodized CNC Aluminum Accumulator, a Polysulphone Infra-red Sensor, URO components,Custom hoses, aluminum change-over relocation bracket, Plug-N- Play wire harness, mounting hardware, connectors, "Lifetime AOS" full kit $710 usd

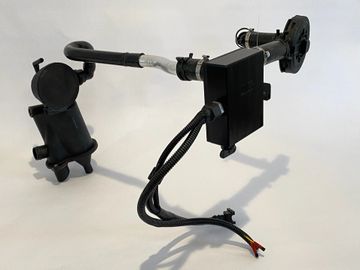

view of Full UAOS-AL kit except for aluminum relocation bracket for change-
12
Complete base kit UAOS-AL ..$710
CNC Machined Billet Black Anodized Aluminum Accumulator with "Cotes de Gene
15
Shown with Fabspeed Competition Intake (will fit stock system as well)
22
UAOS-E (Elite)
The UAOS-E (Elite) features an Billet Black Anodized Aluminum Accumulator, Custom Optical Microprocessor Controlled Infra-red Sensor, OEM components, Custom hoses, aluminum change-over relocation bracket, Plug-N- Play wire harness/relay,mounting hardware, connectors, "Lifetime OEM AOS" complete kit price $1,050.00
Black Aluminum Anodized Accumulator
12
Black Anodized Aluminum Accumulator is rugged and beautiful at the same time with "Cotes de Geneve" machining pattern showing through the anodizing Add this to basic kit for $250
rear cover/bracket integral design
15
Tough enough you can run over it with a truck

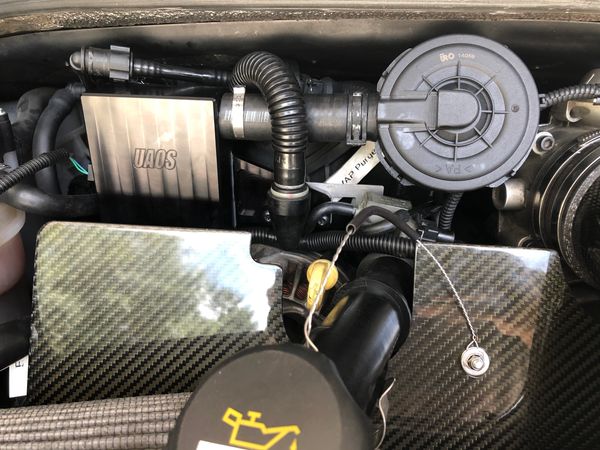

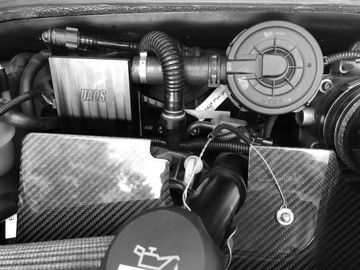

installed view
22
Installed look of the UAOS-E (shown with Fabspeed intake.)
UAOS-CFN
UAOS-CFN features a Carbon Fiber/ Nylon Accumulator, a Polysulphone Microprocessor Controlled Infra-red Sensor, URO aftermarket components,Custom hoses, aluminum change-over relocation bracket, Plug-N- Play wire harness, mounting hardware, connectors, "Lifetime AOS" disscontinued

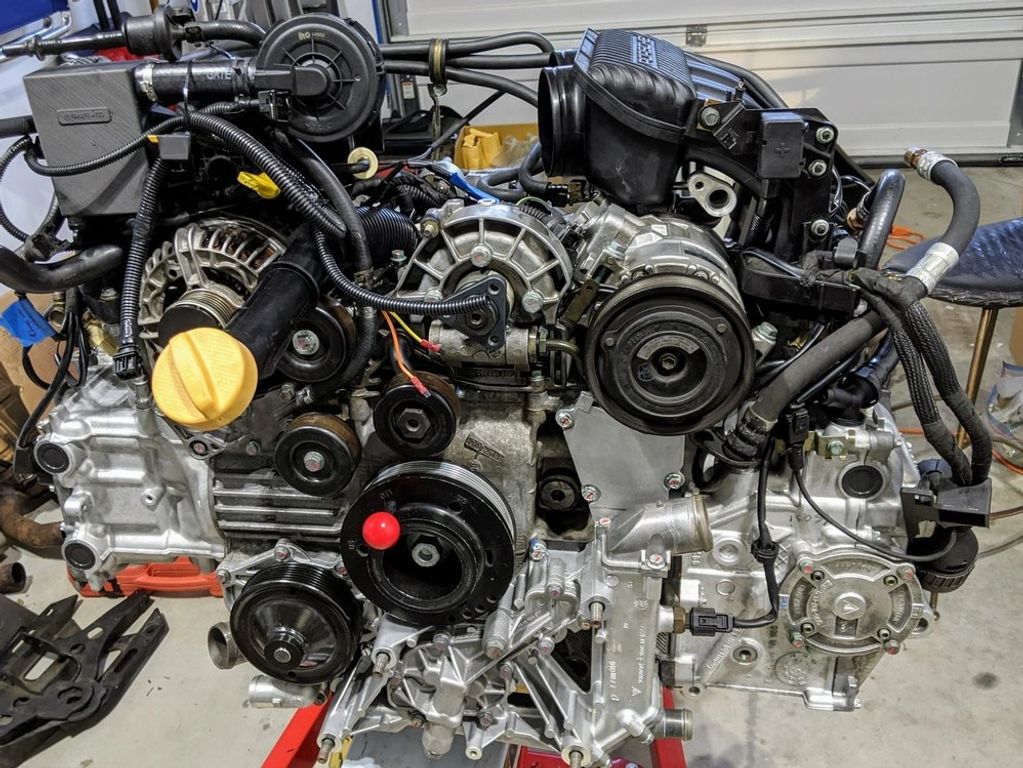

view of installed UAOS-CFN kit
12
Complete kit UAOS-CFN ..$disscontinued

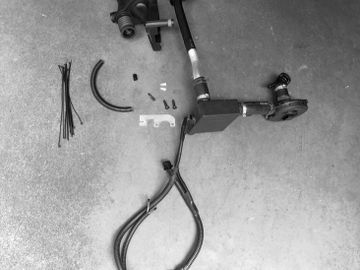

Full UAOS-CFN kit laid out
15

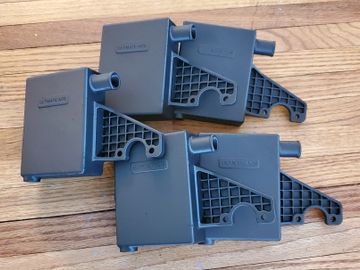

Carbon Fiber/Nylon Accumulators
22
Carbon Fiber / Nylon Accumulators are tough and specs to withstand 285F at 66PSI disscontinued
Add a footnote if this applies to your business
About the Ultimate AOS
Design Theory
USPTO Patent # 11,326,489
The Ultimate AOS design works by taking a systematic approach to the problems associated to to the Factory AOS and correcting/improving them. The UAOS is not just an improved replacement part, it is a complete redesigned System.
The Factory AOS design is well known for failing of the flow control diaphragm, and the result is increased oil consumption, or excess smoking, and in severe cases engine hydrolock causing bent rods and cylinder damage.
When the flow control diaphragm fails in the Factory AOS, the present procedure is to replace the complete AOS. This procedure is very labor intensive due to the location of the Factory AOS, and involves hours of labor.
In the Ultimate AOS design, the flow control diaphragm regulator is moved to easy access at a location near the throttle body and can be replaced in a matter of minutes. The "Vortex" part of the air-oil-separator is left as Factory designed and drains the separated oil back to the oil sump.
As an additional design improvement, the Ultimate AOS, incorporates an Accumulator in series between the Vortex and the Flow Control Diaphragm Regulator. The Accumulator acts as a secondary air/oil separator and collects any excess oil in the crankcase vent system. Also incorporated in the Accumulator is an infra-red sensor set to activate an in-dash warning if accumulation reaches a dangerous level of about 117ml , indicating a fault in the Crankcase Vent System and allows for operator intervention before any engine damage can occur. This feature will save engines from the threat of hydrolock.
The Infra-red warning feature is Microprocessor Controlled and wired to the low coolant warning circuit, and will "slow flash" the red warning in the instrument cluster.
Professional installation is recommended.
Design Advantages
The UAOS will stop the worry of "catastrophic failure" of the engine due to hydrolock. It will also eliminate EVER haveing to replace the AOS AGAIN, which is a costly and time consuming job for most shops. Failure of M96 engines due to AOS malfunction is responsible for more engine damage than has been previously assumed. The emission legal UAOS Street Version can be ran with oil level "full", (no need to run at 1/2 qt low due to to AOS deficiency), The emission legal UAOS Street and Track Version can be ran at 1/2qt to .75qt" overfull". The non-emission legal Race only version can be ran at .75 to 1.25 qts "overfull" for oil starvation protection..( NOTE : oil level recommendations are assuming your engine is in good health by testing blow-by. Test blow-by for normal readings using this procedure in the Rennlist thread https://rennlist.com/forums/996-forum/1185646-engine-health-blow-by-test.html?highlight=blow-by+engine+health )
We are proud to have LN Engineering as an Authorized re-seller of the UAOS. in-stock, fast shipping , no lead time !! https://lnengineering.com/catalogsearch/result/?q=uaos
Description
USPTO PATENT # 11,326,489
Never replace the "AOS" again !!
The UAOS has a 2 year unlimited mileage warranty on all components except the pre-sealed AOS which carries a "Lifetime Warranty"
Stop worrying over engine failure over hydrolock caused by failed AOS !!!
The UAOS Street Version and Street and Track Version is still emission compliant. UAOS Race only Version is not emission compliant and is for Off-Road only
Flow regulator easily replaced in minutes !!
Has "built in" warning system to end unexpected "hydrolock" !!
UAOS comes complete with Accumulator, Flow Regulator, all hoses, Microprocessor Controlled Infra-red Sensor , Plug-N-Play wiring, mounting hardware, fully assembled and pre-wired. a pre-sealed/modified "lifetime AOS" is included with each kit
If you have a 99, I need to know if it's a C2 or C4 and also the VIN number (early model 99C2 will include a rubber elbow and clamps to replace plastic Factory elbow also avilible for 996.1 2000-2001 E-gas, 996.2 3.6
Now available for 986.1 Boxster 2.5 , 986.1 Boxster 2.7 and 3.2, 986.2 987.1 Boxster 2005-2006, 987.1 Cayman 2006-2008& Boxster 2007& 2008, 997.1 3.6 (early 2005), 997.1 3.6( late 2005 up) 997.1 3.8 "S" Make sure to put year model and engine size, plus Vin and engine serial number in the notes
The pre-sealed /modified AOS carries a Lifetime warranty, all other components carry a 2 year unlimited mileage warranty Warranty is for material and craftsmanship only and does not cover labor or anything outside of parts replacement only
shipping cost $30 in usa, overseas TBD
Please allow 2-4 weeks lead time
Please include your shipping address and year model of your 996 when ordering .
See this thread for UAOS install instructions / Tips/ Tricks https://rennlist.com/forums/996-foru...ps-tricks.html
Buy UAOS-AL Complete kit
$710.00
($30.00 shipping)
Complete UAOS-AL kit includes "lifetime" pre-sealed AOS, Black Anodized Aluminum Accumulator, Infra-red sensor, Plug-N-Play Harness, aluminum relocation bracket for change-over valve, custom hoses, flow regulator, and mounting hardware. Please include year and model in the notes
Buy UAOS-E(Elite) Complete kit
$1,050.00
($30.00 shipping)
Complete UAOS-E(elite) kit includes "lifetime" pre-sealed AOS, Black Anodized Aluminum Accumulator, Custom Optical Microprocessor Controlled Infra-red sensor, OEM components , Plug-N-Play Harness, aluminum relocation bracket for change-over valve, custom hoses, flow regulator, and mounting hardware. Please include year and model in the notes.
Buy UAOS-CFN Complete kit
$0.00
($30.00 shipping)
Complete UAOS-CFN kit includes "lifetime" pre-sealed AOS, Carbon Fiber Filled Polyamide 12 Accumulator, Infra-red sensor, Plug-N-Play Harness, aluminum relocation bracket for change-over valve, custom hoses, flow regulator, and mounting hardware. ( disscontinued)
UAOS high mileage/Extreme Track Duty Auto-Drain
$175.00
($10.00 shipping)
The UAOS high mileage/Extreme Track Duty Auto-Drain will stop the need to drain the Accumulator and frequent warnings of the Infra-red sensor. All fittings, hose, seals,connectors, clamps, and a new Genuine Porsche oil fill tube pre-fitted with connector and seal.

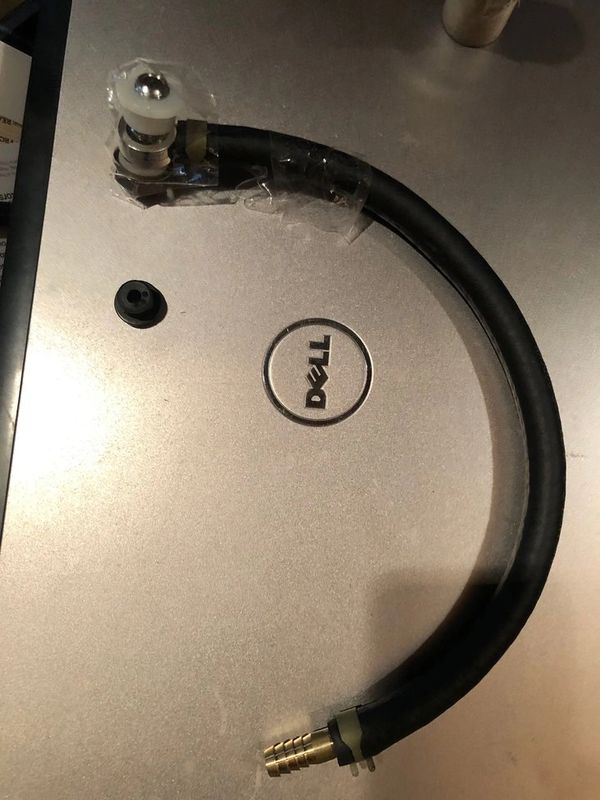

UAOS high mileage/Extreme Track Duty Auto Drain fittings
$75.00
($0.00 shipping)
These high quality banjo bolt fittings and pressure seal (145psi) for UAOS Aluminum Accumulators ONLY. Includes everything needed except the oil fill tube, you will need to drill 1/2 inch (.500) hole and insert the seal/fitting, (instructions included)..
UAOS coolant by-pass kit
$25.00
UAOS coolant by-pass kit uses high temp silicone rubber caps rated at 450F and 145psi and positive seal clamps and brass connector to replace factory plastic connector..... free shipping .........Note : to use with UAOS ONLY:::::will be included in all UAOS kits for 996 after 4/11/2021
Photo Gallery
Complete UAOS kit with caption/diagram
The Accumulator collects any unwanted oil/water vapors, and is incorporated with an Infra-red sensor that warns of dangerous accumulation and ENDS HYDROLOCKING !!

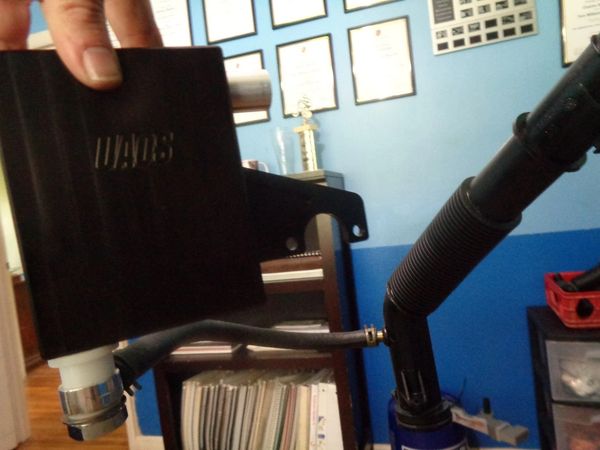

Black Anodized Aluminum Accumulator upgrade
back view

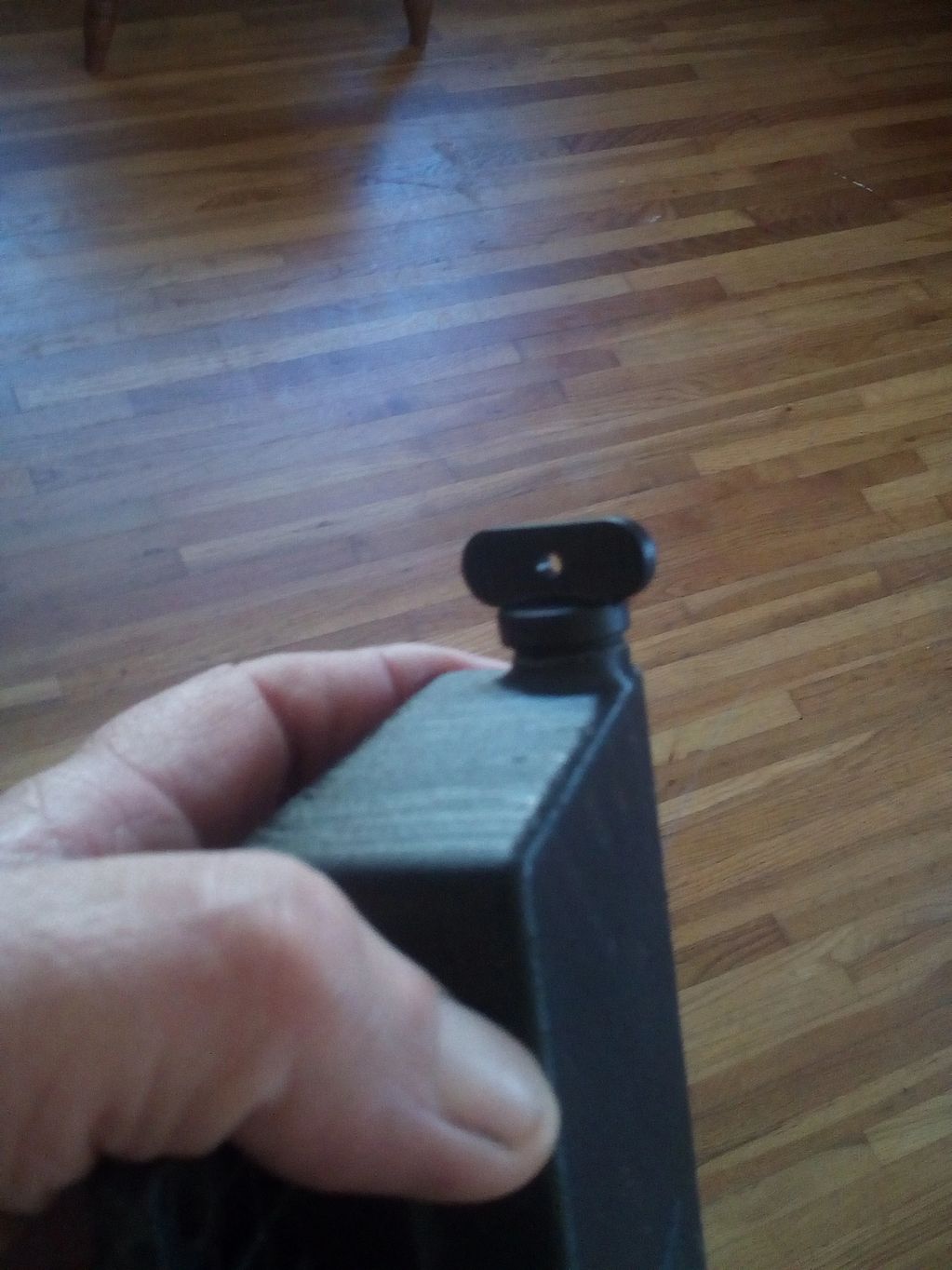

Easy access no tools required for Accumulator check/drain scheduled for oil change intervals

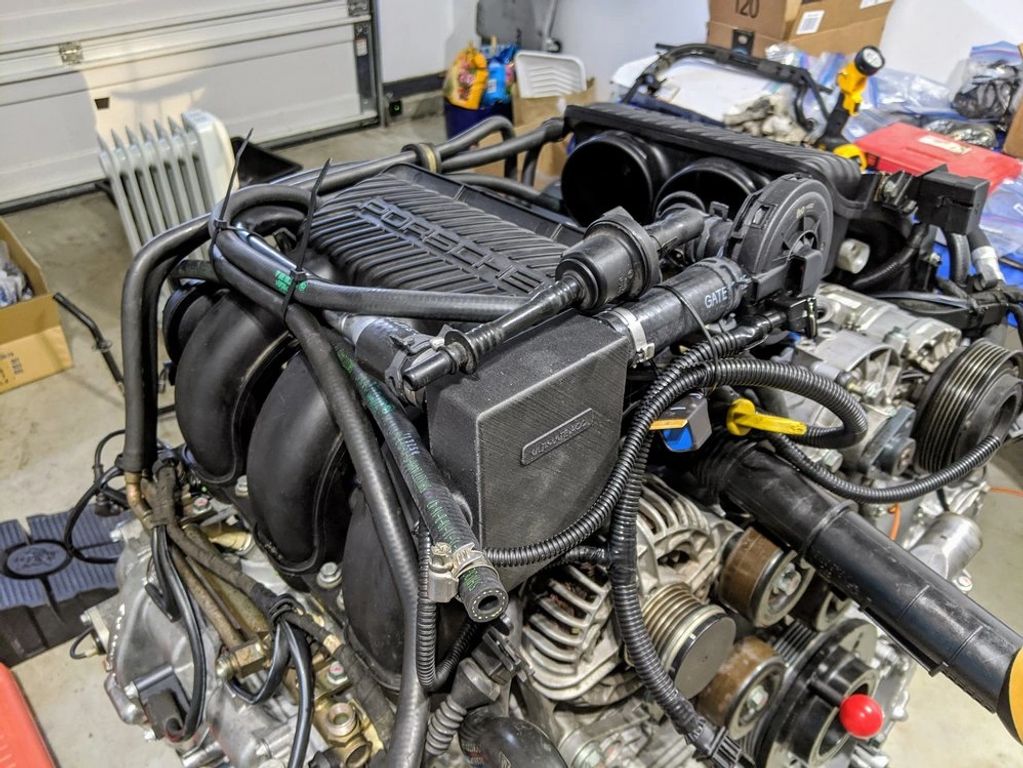

installed kit view
